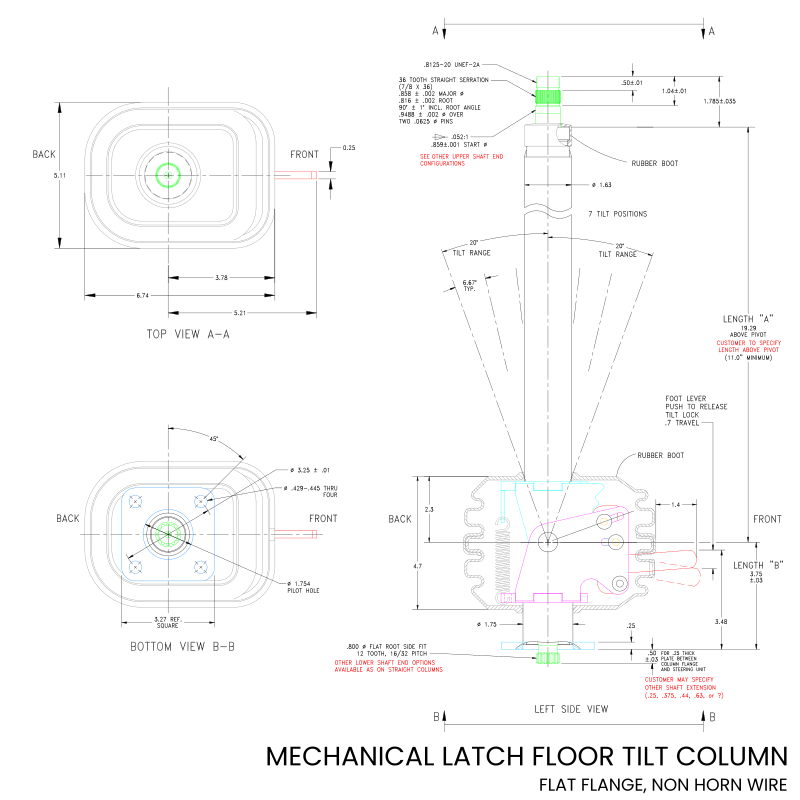

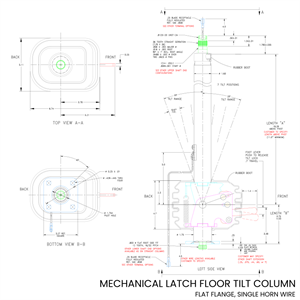

7 position tilting steering column with foot operated pivot design. Fixed lower bracketry for direct floor mounting. Upper length can be configured per customer specifications.

• Foot operated latch with 40 degree range of pivot
• Mechanical locking accommodates 6.67° increments of tilt
• Welded lower bracketry with mounting flange options
• Rubber boot to protect tilt brackets and locking mechanisms
• Outer tube and brackets have flat black powder coat finish.
• Shafts are phosphate coated and oil dipped for corrosion protection.
• Fully machined 4140 Steel U-joint.
• Also available with Console and/or Telescopic upper end.
• Standard Options:
  • BSM #1 Upper for 7/8” 36 tooth serrations and 13/16-20 UNEF thread
  • Flat Flange
  • BSM#1 Lower Shaft Extension of 0.25” from bottom of flange
• Additional options for length, bolt hole pattern, upper end, lower end, and horn wire configuration. See link below.
